AssemblyPOD
The Assembly Template POD is a UI5 application designed to allow assembly operations for a single SFC at an active operation step. It utilizes public APIs published to the Public API Hub for accessing microservices in SAP Digital Manufacturing Cloud for execution. Customers and partners can import the Assembly Template POD into Web IDE, make modifications as needed, and deploy it to their PaaS account.
Pre-requisites
- SAP Cloud Platform Account
- SAP Cloud Platform subaccount Entitlement for Application Runtime
- SAP Cloud Platform subaccount Entitlement for Destination

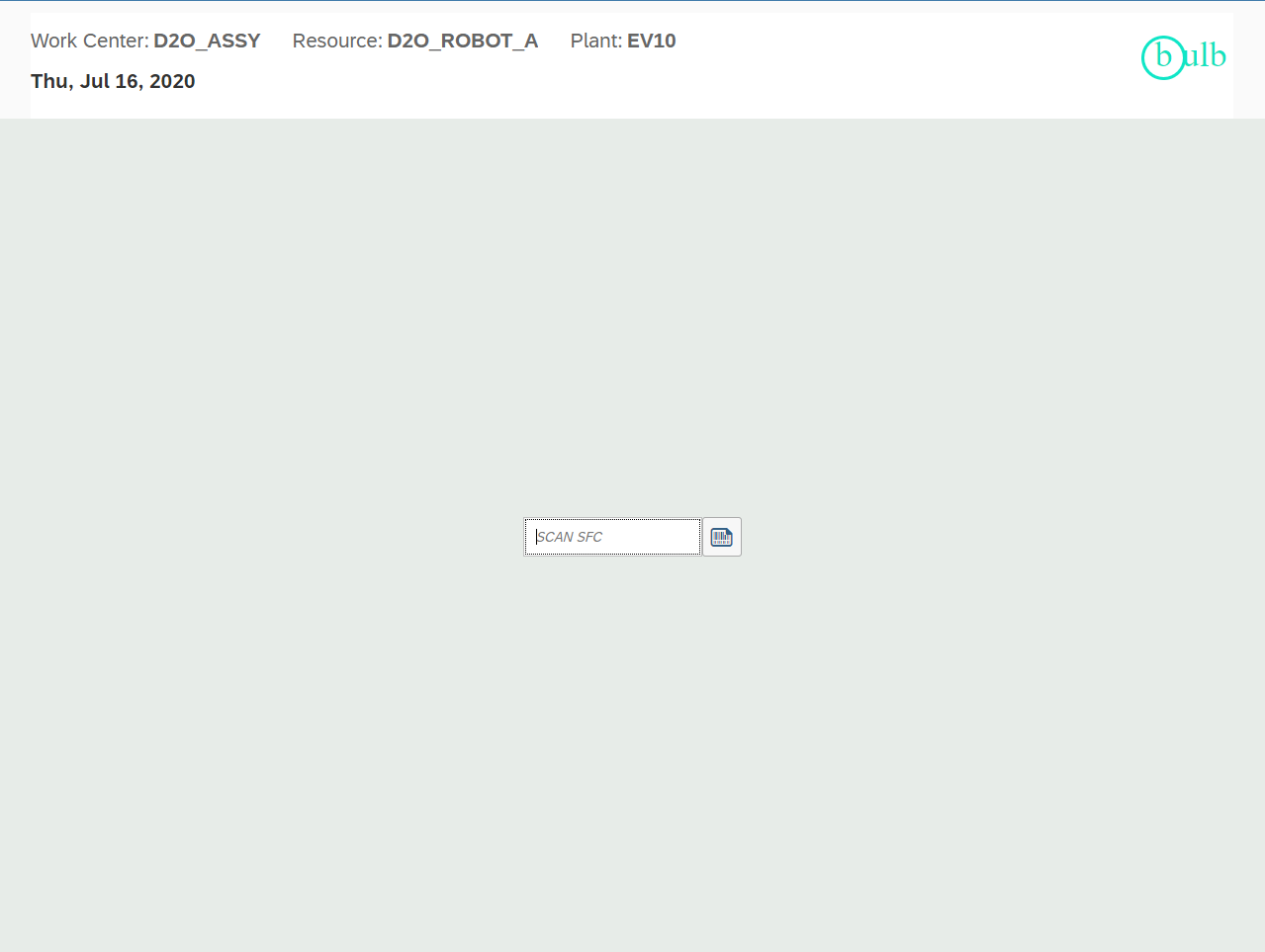

Template Assembly POD Landing Page

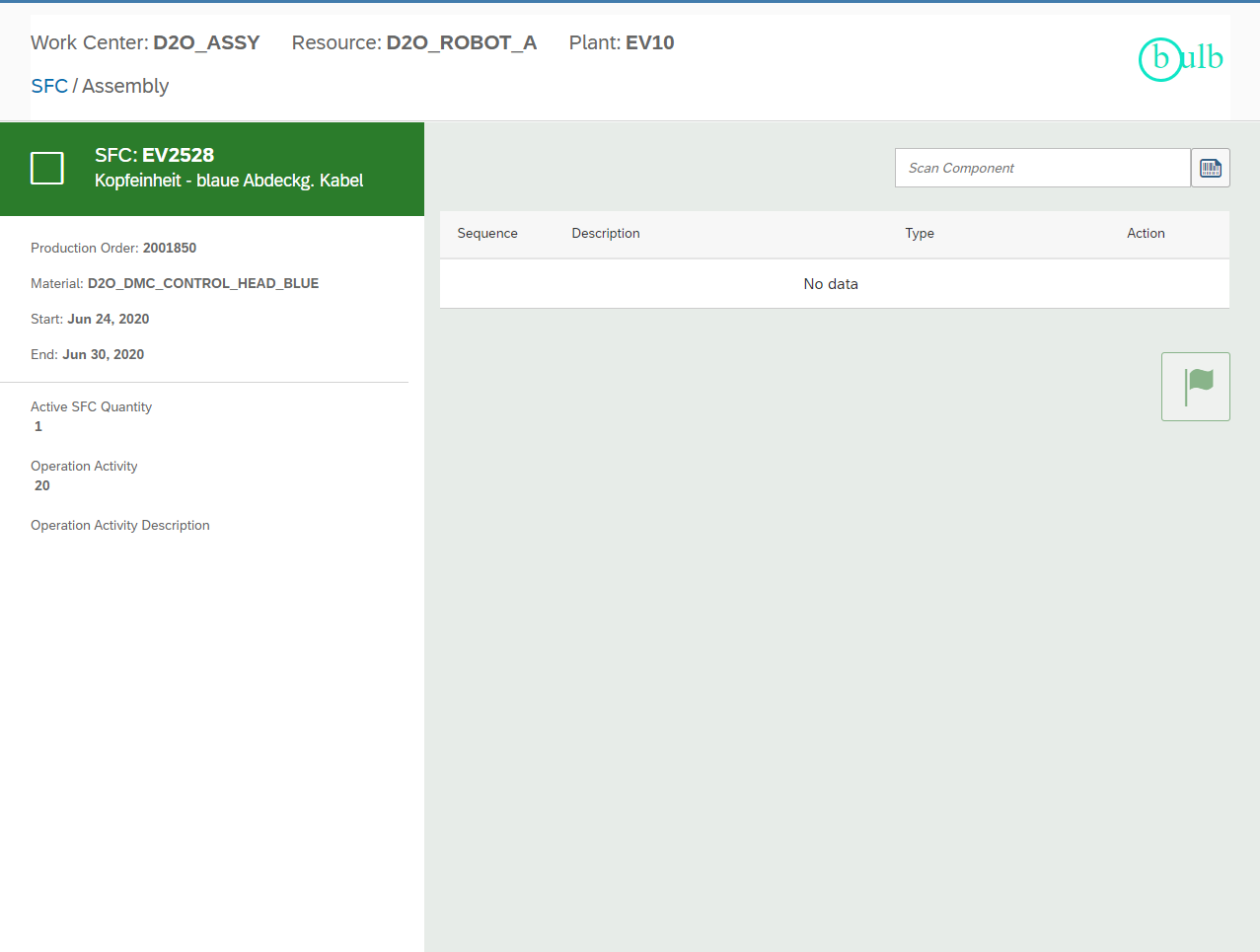

Template Assembly POD Detail Page
Getting Started
Please check SAP Help Portal - Digital Manufacturing Cloud for general information.
The major steps are:
1. Prepare your Editor
Clone the repository to your editor and build the application. SAP WebIDE provides easy build and deploy capability to SCP but this can be achieved with local editors as well.
2. Configure the Destination
Create a destination in the SAP Cloud Platform tenant, please refer the following screenshot for sample values.
- Destination : It should match with the name given in xs-app.json file.
- URL : It can be found in the endpoint of SAP API Business Hub. For DMC Production instance, it should be
https://api.[region].dmc.cloud.sap. For DMC Quality instance, it should behttps://api.test.[region].dmc.cloud.sap. The list of available URLs can be found in the SAP API Business Hub. - Client ID : It can be fetched from the value of “clientid” in the service key of Digital Manufacturing Cloud instance in your SAP Cloud Platform Account.
- Client Secret : It can be fetched from the value of “clientsecret” in the service key of Digital Manufacturing Cloud instance in your SAP Cloud Platform Account.
- Token Service URL : It can be fetched from the value of “url” in the service key of Digital Manufacturing Cloud instance in your SAP Cloud Platform Account, and add “/oauth/token” in the end. For example,
https://[subaccount].authentication.[region].hana.ondemand.com/oauth/token.

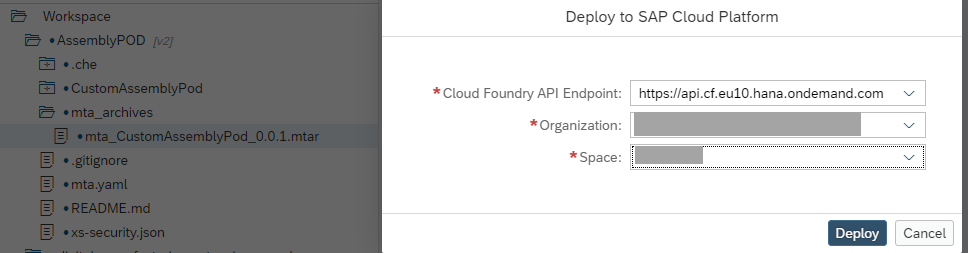

3. Deploy to your SAP Cloud Platform Tenant

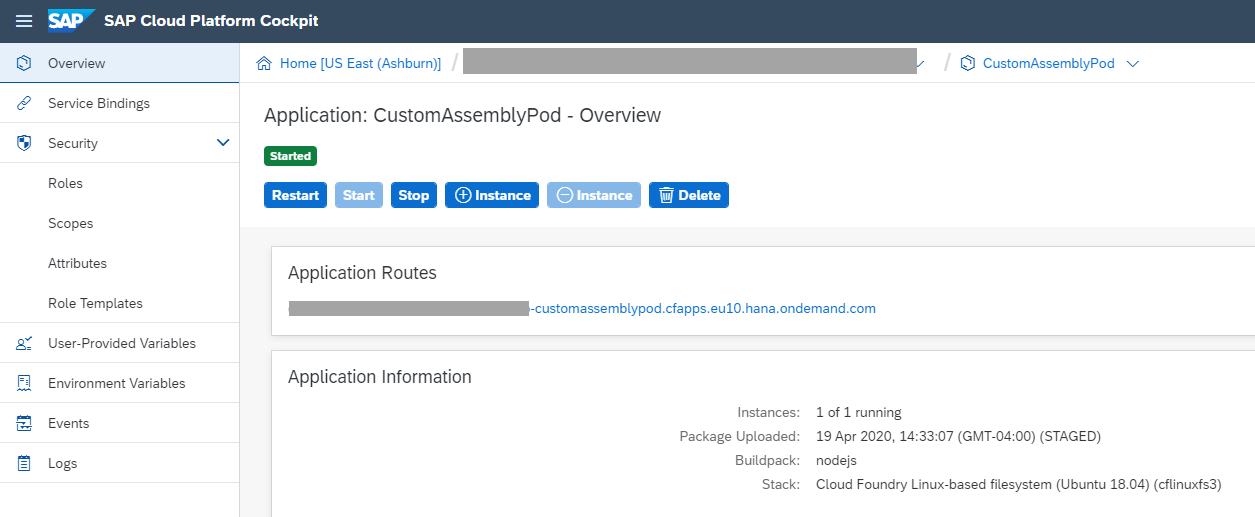

After building the application the MTAR file will be available in the mta_archieves folder which can be deployed to SAP Cloud Platform.
4. Run the Application with the URL parameters
Build the application url adding the appropriate URL parameters
https://
2D Barcodes for Assembling Components
The Assembly page provides an input field for scanning ISO 15434 barcodes. There are issues with scanning ISO 15434 barcodes with several major browsers that cause browser shortcut keys to be invoked. For that reason, the following control character sequences should be used by barcodes used by the Assembly Template POD.
| Code Type | Control Character | Replacement Control Characters |
|---|---|---|
| Group Separator | {GS} | |
| Record Separator | {RS} | |
| End of Transmission | {EOT} |
Additional scan codes that must be included are defined below.
| Code Type | Control Characters |
|---|---|
| Scan Header | |
| Data Format | 06 |
The following data types are supported using the ISO 15434 types defined below
| Data Type | Prefixes |
|---|---|
| COMPONENT | 19P |
| SERIAL_NUMBER | 15S, 18S, 2C, S, 1S |
| LOT_NUMBER | T, 1T |
| COMMENTS | 11Z, 12Z, 13Z |
| SFC | 1FC |
| INVENTORY_ID_SFC | 1IS |
The scan must include the header of “” as well as the data format “06” to be interpreted properly. See example barcode below: 06{GS}11ZComment Test{GS}19PBRACKET{GS}T002_LOT{GS}15S1234-ES{RS}{EOT} Will return the following information:
COMPONENT: BRACKET COMMENT: Comment Test LOT_NUMBER: 002_LOT SERIAL_NUMBER: 1234-ES
The COMPONENT data field is required in the Assembly Template POD. If it is not provided an error will display.
