Prerequisite

Complete Exercise 6 before starting this exercise.

CAP functions vs. actions

CAP functions use HTTP GET and must not modify data. CAP actions use HTTP POST. The sleep procedure in this exercise is a function (read-only side effect — it only waits).

Exercise 7 - Create HANA Stored Procedure and Expose as CAP Service Function (SAP HANA Cloud)

In this exercise you will create a native SAP HANA stored procedure and wire it into your CAP application as a callable service function — without exposing it as an OData entity set.

Source

These steps are from Create HANA Stored Procedure and Expose as CAP Service Function (SAP HANA Cloud) on SAP Tutorials.

Create stored procedure

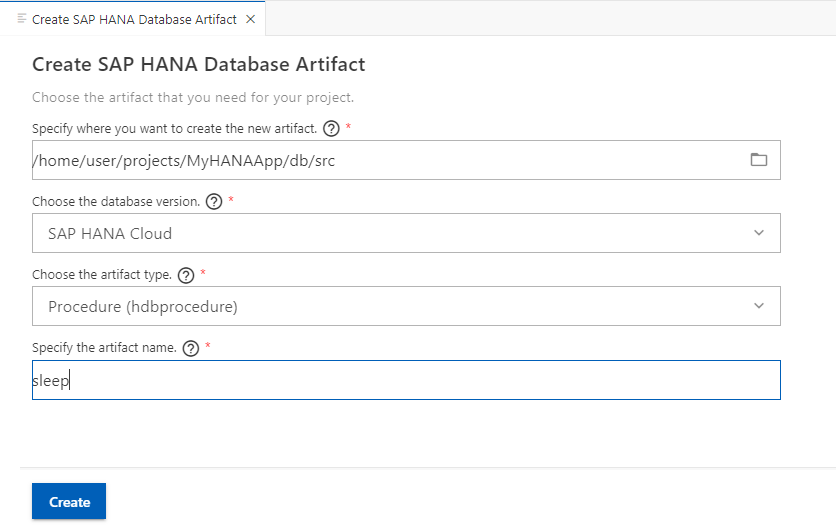

1. In the /db/src folder create a new database artifact named sleep of type hdbprocedure

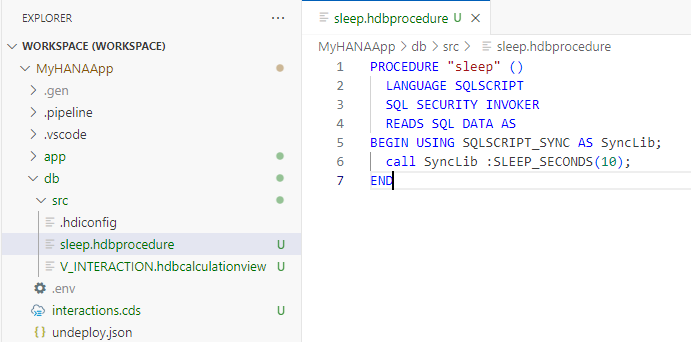

2. This is a very simple SAP HANA Stored Procedure that calls the built-in SYNC library to put processing to sleep for 10 seconds. It's a nice tool to be able to test the impact of long running queries without actually putting unnecessary load on the system.



   PROCEDURE "sleep" ( )
      LANGUAGE SQLSCRIPT
      SQL SECURITY INVOKER
      READS SQL DATA AS
   BEGIN USING SQLSCRIPT_SYNC as SyncLib;

   call SyncLib:SLEEP_SECONDS(10);

   END

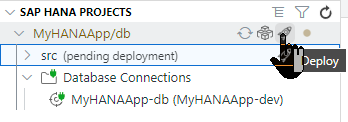

3. Deploy the to the database again using the SAP HANA Projects view.

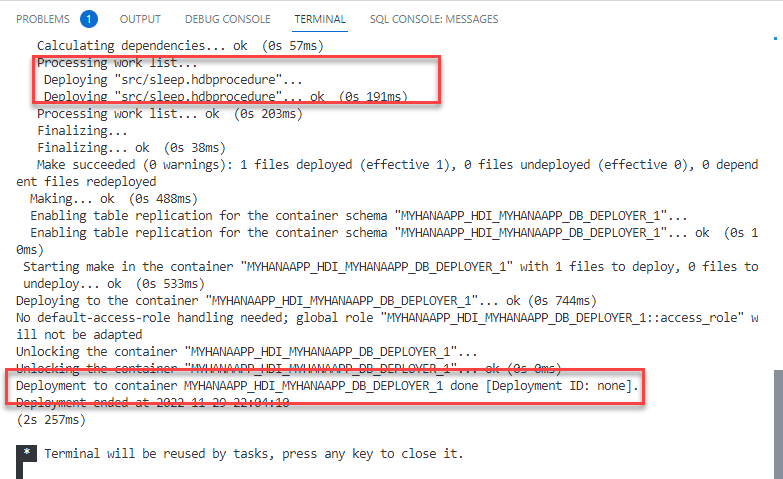

4. Check the deployment log to make sure everything was successfully created in the database.

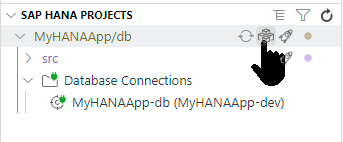

5. Open the HDI Container in the Database Explorer

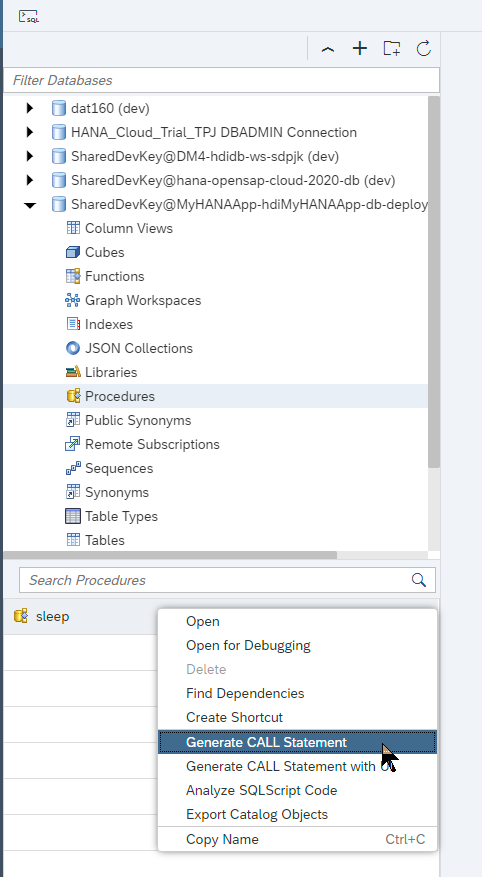

6. This new Procedure is there now and can be tested.

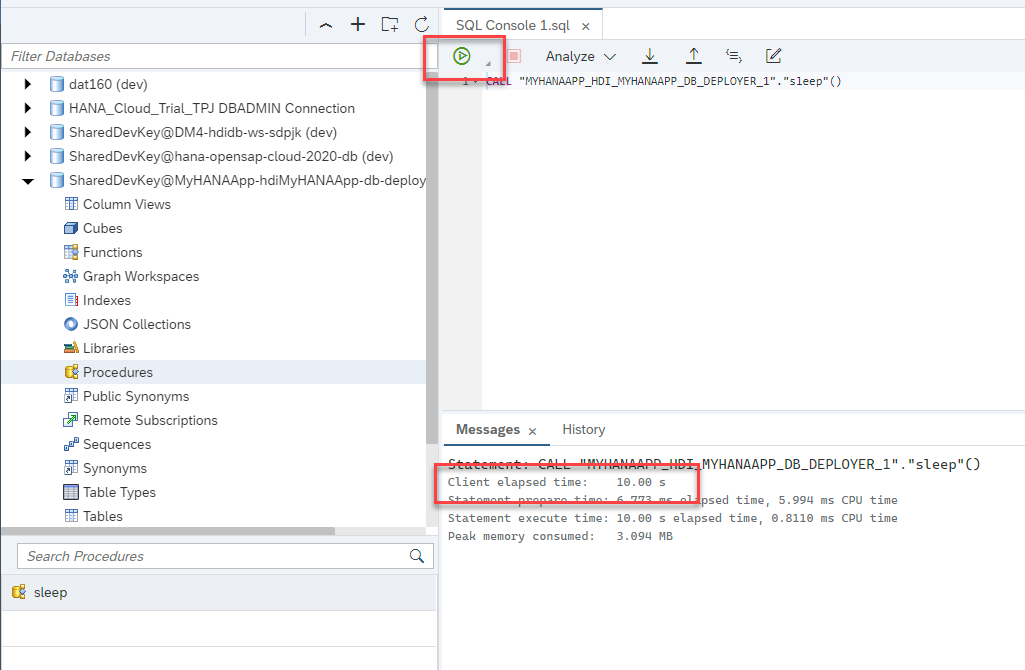

7. There isn't much output from the execution, but the 10 second wait makes testing quite easy.



Add procedure to CAP service

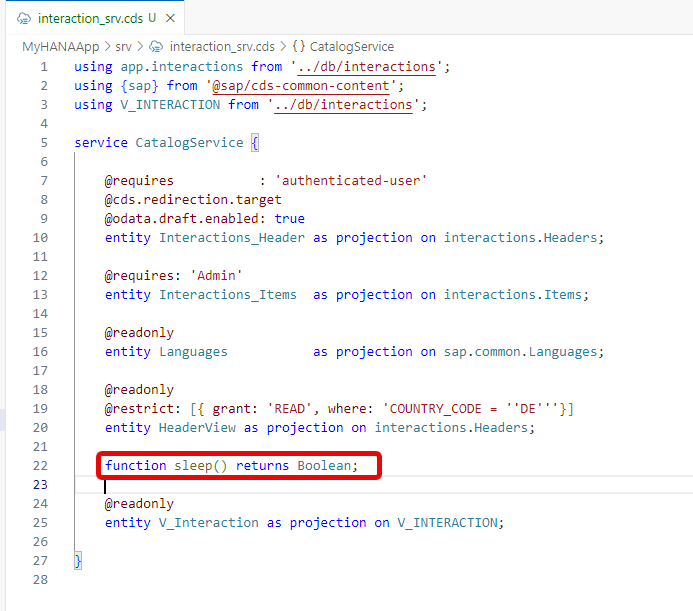

1. Now we want to add this Procedure to the CAP service as a function. Edit /srv/interaction_srv.cds.

   Add: function sleep() returns Boolean; to the service definition.

   This will expose an OData Function as part of the service interface.



2. Just adding the function to the service definition doesn't implement it. Unlike tables and views which are implemented by the built-in handler classes of CAP, we need to use a service handler exit to implement this ourselves. In order to do this create a file named interaction_srv.js in the /srv folder. The name must match interaction_srv.cds just with the different file extension for JavaScript. The matching naming tells CAP that you want to use this file to write custom exit handlers for the services defined in interaction_srv.cds.

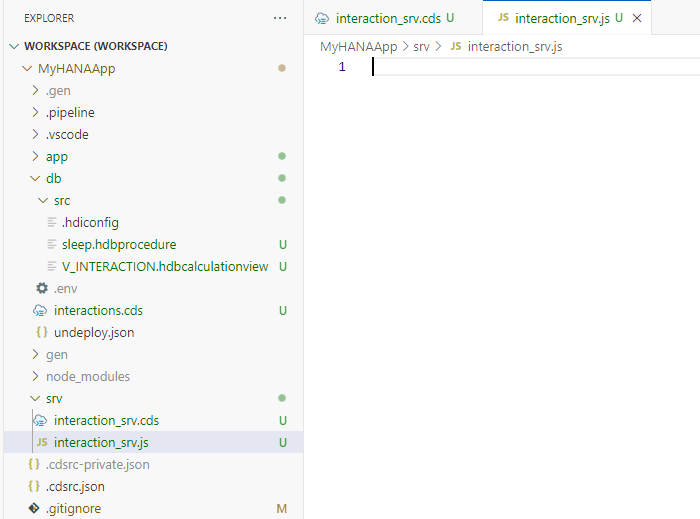

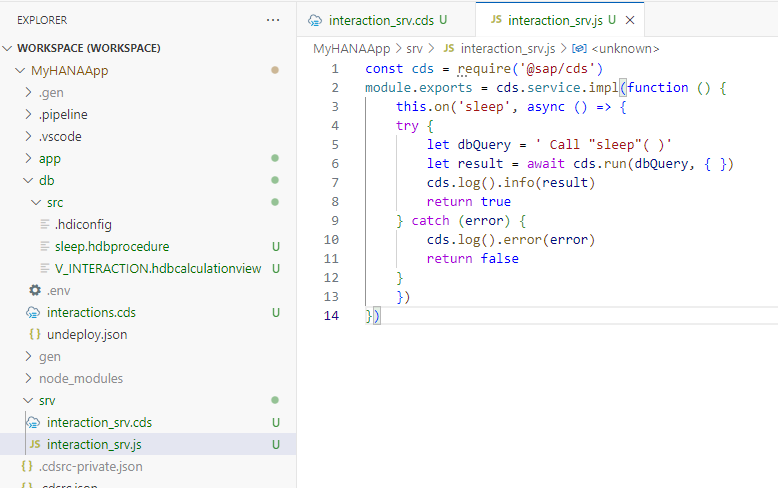

3. In interaction_srv.js we will implement the call to the Stored Procedure. This logic will implement the exit handler for this function which in turn uses the standard hdb Node.js module to call the Stored Procedure from SAP HANA Cloud. Save the file.



   const cds = require('@sap/cds')
   module.exports = cds.service.impl(function () {
       this.on('sleep', async () => {
       try {
           let dbQuery = ' Call "sleep"( )'
           let result = await cds.run(dbQuery, { })
           cds.log().info(result)
           return true
       } catch (error) {
           cds.log().error(error)
           return false
       }
       })
   })

4. From the console in the project root hopefully you still have the cds watch ... running. Otherwise start it again with cds watch --profile hybrid to start the CAP service layer for testing. If you have performed the tutorial SAP HANA Cloud, Add User Authentication to Your Application, remember you must also run the application router to test your service with authentication.

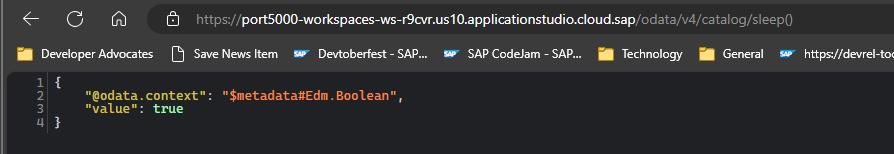

5. The CAP preview UI doesn't list functions or actions, however. Manually add /odata/v4/catalog/sleep() to the end of the URL. If it works correctly it should take 10 seconds to respond since the procedure is running a sleep operation for that long.



You've now added an OData function to your service layer which in turn is implemented as an SAP HANA Stored Procedure

Background

Stored procedures vs. entities

In Exercise 6 you exposed a Calculation View as a read-only OData entity set using the proxy entity pattern. A stored procedure is fundamentally different: it is a callable unit of logic with its own input/output parameters, not a tabular result set you page through with $top and $skip.

CAP models this distinction at the service definition level:

Database artifact	CAP surface	OData surface
Table / Calculation View	Entity / Projection	Entity set (GET /Interactions_Header)
Stored procedure / function	CAP function or action	Function import (GET /sleep()) or action import (POST /sleep)

CAP functions vs. actions

CAP's OData vocabulary distinguishes two kinds of callable operations:

• Function — read-only, has no side effects, addressed with HTTP GET. Modelled with the function keyword in CDS.
• Action — may modify state, addressed with HTTP POST. Modelled with the action keyword in CDS.

The sleep procedure used in this exercise is declared as a function because it only reads data (the READS SQL DATA clause in SQLScript):

// srv/interaction_srv.cds
function sleep() returns Boolean;

A write-heavy procedure — one that inserts or updates rows — would be declared as an action instead.

The .hdbprocedure artifact

Stored procedures that live inside your HDI container are defined in .hdbprocedure files under db/src/. The HDI deployer compiles these files into native HANA stored procedures during cds deploy.

The sleep procedure in this exercise looks like this:

-- db/src/sleep.hdbprocedure
PROCEDURE "sleep" ( )
   LANGUAGE SQLSCRIPT
   SQL SECURITY INVOKER
   READS SQL DATA AS
BEGIN USING SQLSCRIPT_SYNC as SyncLib;

call SyncLib:SLEEP_SECONDS(10);

END

Key clauses:

• LANGUAGE SQLSCRIPT — written in HANA's native procedural SQL dialect
• SQL SECURITY INVOKER — the procedure runs with the permissions of the calling user, not the procedure owner
• READS SQL DATA — declares the procedure as read-only (no INSERT/UPDATE/DELETE); required to use the SQLSCRIPT_SYNC library
• USING SQLSCRIPT_SYNC as SyncLib — imports the built-in library that provides the SLEEP_SECONDS procedure

Calling the stored procedure from CAP

Unlike entity-based access (where CAP generates and executes the SQL automatically), calling a stored procedure requires a custom handler in srv/interaction_srv.js. The handler uses cds.run() with a raw CALL statement:

// srv/interaction_srv.js
const cds = require('@sap/cds')
module.exports = cds.service.impl(function () {
    this.on('sleep', async () => {
        try {
            let dbQuery = ' Call "sleep"( )'
            let result = await cds.run(dbQuery, { })
            cds.log().info(result)
            return true
        } catch (error) {
            cds.log().error(error)
            return false
        }
    })
})

cds.run() is the CAP-managed, driver-agnostic way to execute raw SQL or stored procedure calls against the bound database. It automatically uses the correct underlying driver (hdb, @sap/hana-client, or the SQLite shim in local development) without you needing to manage a connection or import a driver module directly. This is the recommended approach — using the hdb module directly would couple your code to a specific HANA client version.

Why no database redeployment is needed

When you added the Calculation View in Exercise 6, a redeployment was required because CAP had to generate and deploy a thin .hdbview SQL wrapper to make the view addressable by OData queries.

Functions and actions work differently. The service function declaration (function sleep() returns Boolean) registers the operation in the OData metadata document but does not create any new database object. The stored procedure itself was already deployed as part of the HDI artifacts in db/src/. CAP just needs to know it exists at the service layer — a restart of the CAP server is sufficient.

Summary

You have now wired a native HANA stored procedure into your CAP service as an OData function import. The key takeaways are:

• Stored procedures are exposed as CAP functions (read-only) or actions (stateful), not as entity sets
• The .hdbprocedure file in db/src/ defines the HANA-side logic; the CDS function declaration defines the service-side signature
• cds.run() provides a driver-agnostic way to call the procedure from the Node.js handler — no direct hdb import needed
• No database redeployment is required when adding a function or action, only a server restart

Questions for Discussion

1. What's SQLSCRIPT_SYNC?

   Answer

   SQLSCRIPT_SYNC is a built-in SQLScript library that provides SLEEP_SECONDS and WAKEUP_CONNECTION procedures. Its purpose is to introduce a controlled pause inside a procedure without "busy waiting" (spinning a loop and consuming CPU doing nothing useful). Importing it with USING SQLSCRIPT_SYNC AS SyncLib and calling SyncLib:SLEEP_SECONDS(10) makes the procedure pause for 10 seconds before returning.

2. Why did we have to redeploy to the HANA database after adding the Calculation View in Exercise 6 but didn't need to after adding the Stored Procedure here?

   Answer

   The Calculation View proxy entity required CAP to generate and deploy a thin .hdbview SQL wrapper into the HDI container so that OData queries could reach the underlying Calculation View. That wrapper is a new database object — it requires a cds deploy to create it.

   The stored procedure, by contrast, is already present in the HDI container from the initial db/src/ deployment. Declaring it as a CAP function adds an entry to the OData metadata document and registers a handler, but creates nothing new in the database. Restarting the CAP server is enough.

3. What's the difference between a function and an action?

   Answer

   Both are callable OData operations, but:

   • Function — read-only, no side effects, called with HTTP GET. Declared with the function keyword in CDS.
   • Action — may modify state (insert, update, delete), called with HTTP POST. Declared with the action keyword in CDS.

   The sleep procedure is a function because the underlying SQLScript uses READS SQL DATA — it only reads, never writes.

4. Why did we use cds.run() instead of the hdb module directly to call the stored procedure?

   Answer

   cds.run() is driver-agnostic: CAP selects the correct underlying database driver (hdb, @sap/hana-client, or the SQLite shim) at runtime based on the bound service. Your handler code stays identical regardless of which driver is configured.

   Using hdb directly would hard-code a dependency on a specific client, require you to manage the connection lifecycle manually, and break in environments (such as local SQLite development) where hdb is not available. See CAP: Driver-agnostic results for stored procedures for more detail.

5. Try changing the sleep CDS declaration from function to action. What changes in the OData metadata document, and what HTTP method would you use to call it?

   Answer

   In the OData $metadata document:

   • Before: sleep appears as a <FunctionImport> element
   • After: sleep appears as an <ActionImport> element

   The HTTP method changes from GET to POST. Calling GET /odata/v4/catalog/sleep() after the change will return an error — the runtime now expects POST /odata/v4/catalog/sleep.

   The underlying sleep.hdbprocedure does not need to change — READS SQL DATA is a database-level declaration about side effects, not an HTTP-level one. The CAP service definition is the only file to update.

   Use function (GET) for read-only operations with no side effects. Use action (POST) for operations that modify data, trigger a process, or have observable side effects — for example, a procedure that inserts an audit log entry or sends a notification.

6. The sleep procedure uses SQL SECURITY INVOKER. What is the difference between SQL SECURITY INVOKER and SQL SECURITY DEFINER, and why does it matter?

   Answer

   • SQL SECURITY INVOKER — the procedure runs with the permissions of the calling user. If the caller cannot read a table, the procedure cannot read it either.
   • SQL SECURITY DEFINER — the procedure runs with the permissions of the procedure owner (typically the HDI container's technical user / schema owner), regardless of who calls it.

   For the sleep procedure, INVOKER is appropriate: the procedure only calls a library function and reads no business data, so there is no reason to elevate the caller's privileges.

   DEFINER is used when a procedure legitimately needs to access objects the calling user cannot reach directly — for example, a reporting procedure that aggregates data from a restricted audit table. However, DEFINER introduces a privilege escalation risk: a caller can do things through the procedure that they could not do directly. SAP recommends defaulting to INVOKER and only switching to DEFINER when there is a clear, justified need.

Further Study

• CAP - Using Native SAP HANA Artifacts — proxy entities, user-defined functions, and stored procedures in CAP
• CAP - Actions and Functions — how to define and implement OData operations
• SAP HANA Cloud SQLScript Reference — full SQLScript language reference
• SQLSCRIPT_SYNC library — SLEEP_SECONDS and WAKEUP_CONNECTION reference
• SAP Tech Bytes: HANA Client Tools for JavaScript (Part 4) — comparison of hdb, @sap/hana-client, and CAP-managed database access
